Protect panels, airboxes and bulkheads from radiant heat with Exoracing gold or silver heat reflective sheet. 1m x 1.2m, adhesive-backed, 450°C continuous.
£69.99
Radiant heat from turbos, manifolds, downpipes and exhaust systems can quickly heat-soak nearby panels and intake parts. Once an airbox, intake pipe or bulkhead starts absorbing that heat, intake temperatures can rise and nearby components can suffer from repeated heat exposure.
Exoracing heat reflective sheet gives you a large, cut-to-shape barrier that reflects radiant heat before it soaks into the surface underneath. It is especially useful on airboxes, intake ducts, bulkheads, floor panels, seat bases, fuel cells, radiator panels and engine bay covers where a sleeve or wrap would not be the right shape.
The sheet is thin, lightweight and adhesive-backed, so it can be shaped around flat panels and gentle curves without adding unnecessary bulk. It can reflect up to 80% of radiant heat, making it a strong upgrade for fast-road, track, drift and drag cars where engine bay heat management matters.
If the heat source is the turbo itself, reduce heat at the source first with an Exoracing turbo blanket, then use reflective sheet on nearby panels or intake areas. If you need to protect hoses, wiring or lines, use silicone fibreglass heat sleeve or Velcro heat sleeve instead.
| Product type | Best use | Choose this when |
|---|---|---|
| Heat reflective sheet | Large panels, airboxes, bulkheads, floor panels and heat shields | You need to cover a bigger surface and cut it to shape |
| Heat reflective tape | Intake pipes, small panels, covers and curved sections | A roll is easier than cutting a large sheet |
| Turbo blanket | Turbocharger turbine housings | You want to reduce heat at the turbo before protecting nearby parts |
| Exhaust wrap | Manifolds, downpipes and exhaust sections | You need to keep heat inside the exhaust pipe itself |
| Heat sleeve | Hoses, wiring, fuel lines, brake lines and oil lines | You need to protect a round hose, cable or loom |
For a full installation walkthrough, use our heat reflective tape and sheet installation guide. For help choosing between sheet, tape, wrap and heat shield products, read our heat shield vs exhaust wrap vs heat tape guide.
| Material | Polymer laminated glass cloth |
| Surface | Gold or silver reflective foil face |
| Length | 1.0m |
| Width | 1.2m |
| Weight | 287g |
| Continuous temperature | 850°F / 450°C |
| Intermittent temperature | 2000°F / 1100°C |
| Application | Self-adhesive backing for clean non-porous surfaces |
| Warranty | Exoracing lifetime warranty |

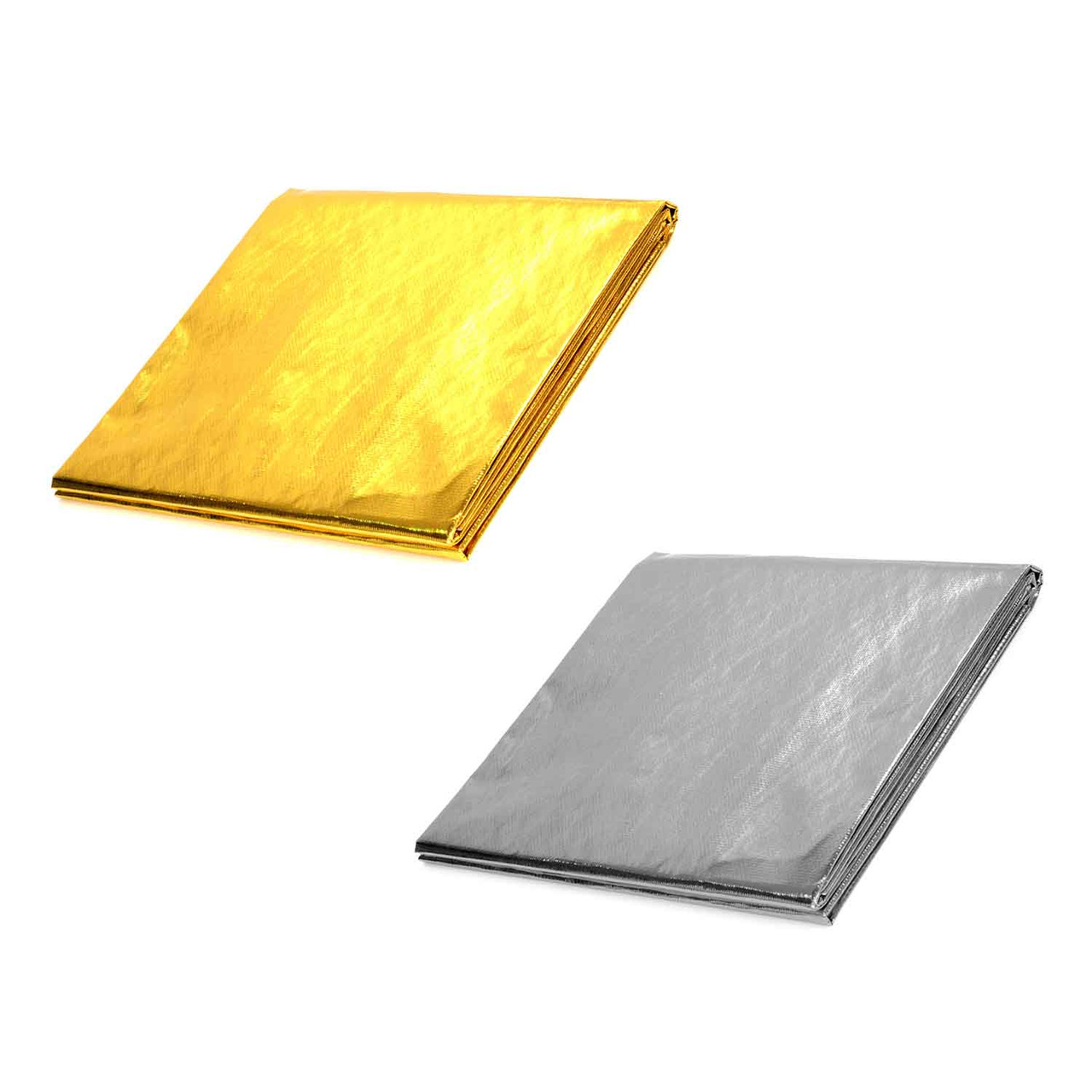

Both options are designed for radiant heat reflection. Choose gold if you want the classic motorsport heat-shield look, or silver if you want a more subtle finish around the engine bay, underbody or interior panels.

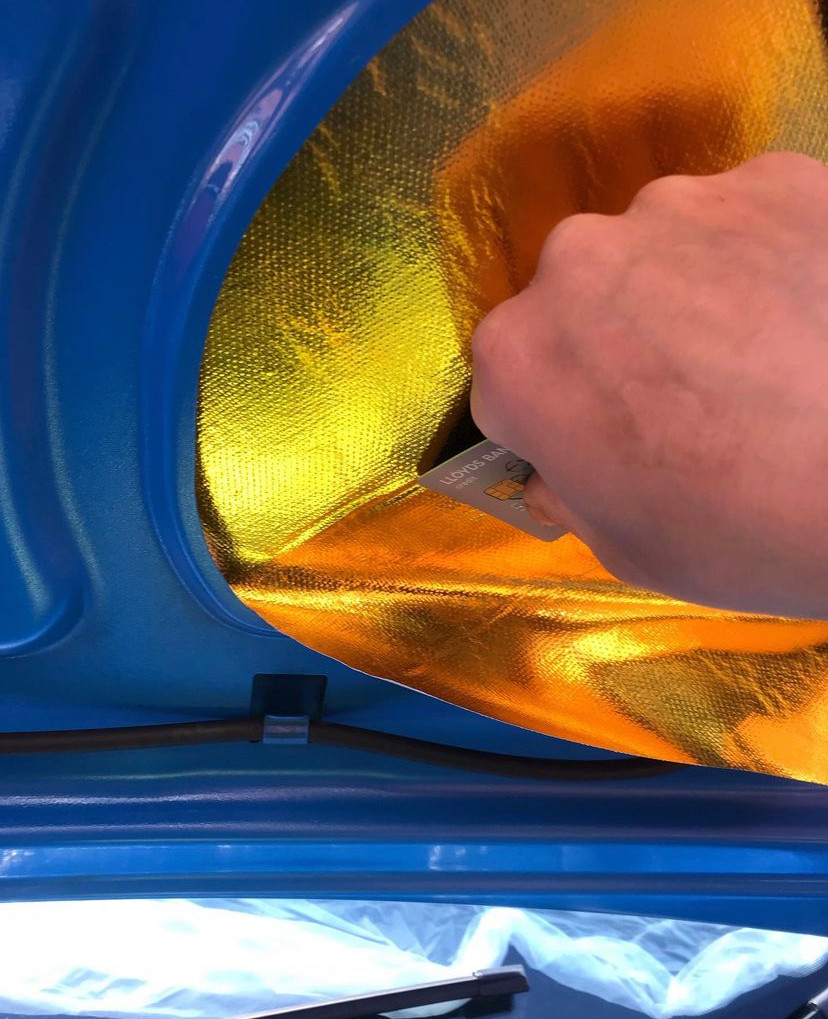

Apply it to clean, dry, smooth, non-porous surfaces such as bare aluminium, stainless steel, painted panels, plastic airboxes and smooth covers. Avoid porous, dirty, oily or heavily textured surfaces, as the adhesive will not bond as well.

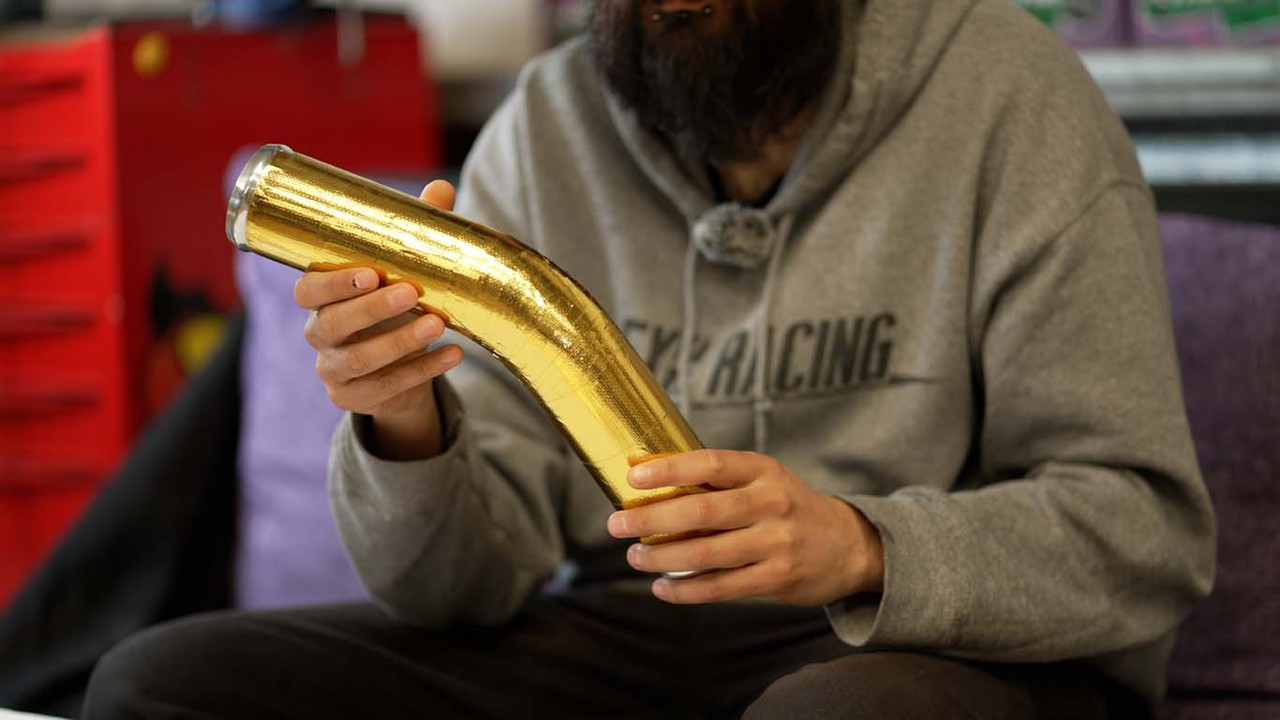

Use sheet for larger flat areas and cut-to-shape panel work. Use heat reflective tape for smaller areas, narrow sections, pipework or curved pieces where a roll is easier to handle.
No. Heat reflective sheet is for nearby surfaces that need radiant heat protection. For exhaust manifolds, downpipes or pipework, use Exoracing exhaust wrap.
Yes. It includes a microfibre cloth and squeegee to help clean the surface and apply the sheet smoothly.
Official product information supplied by Exoracing.
