Why Use Gold Or Silver Heat Reflective Tape?

Radiant heat from turbos, exhaust manifolds, downpipes and hot engine bay areas can quickly heat-soak nearby intake parts and panels. When that heat transfers into an intake pipe or airbox, intake air temperatures can rise and the engine has to work with hotter, less dense air.

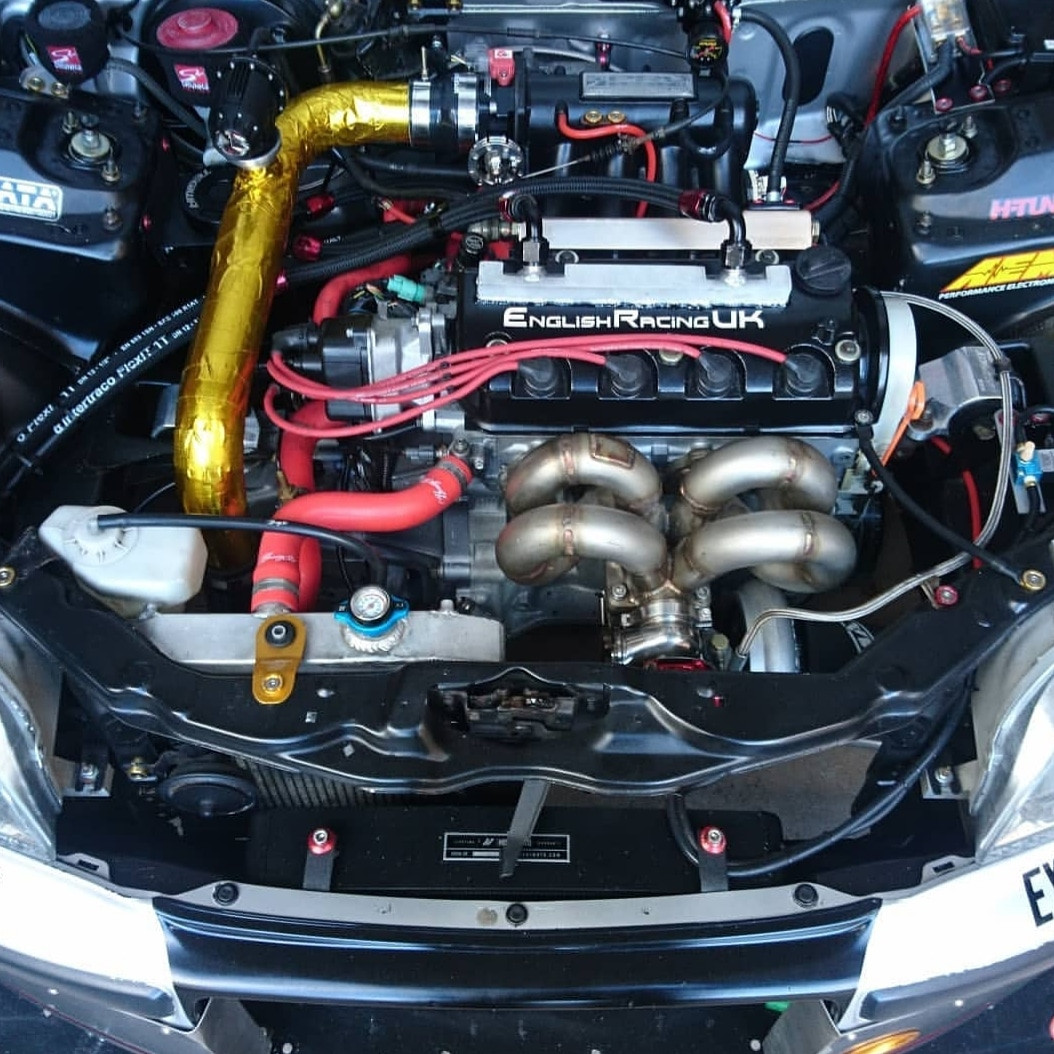

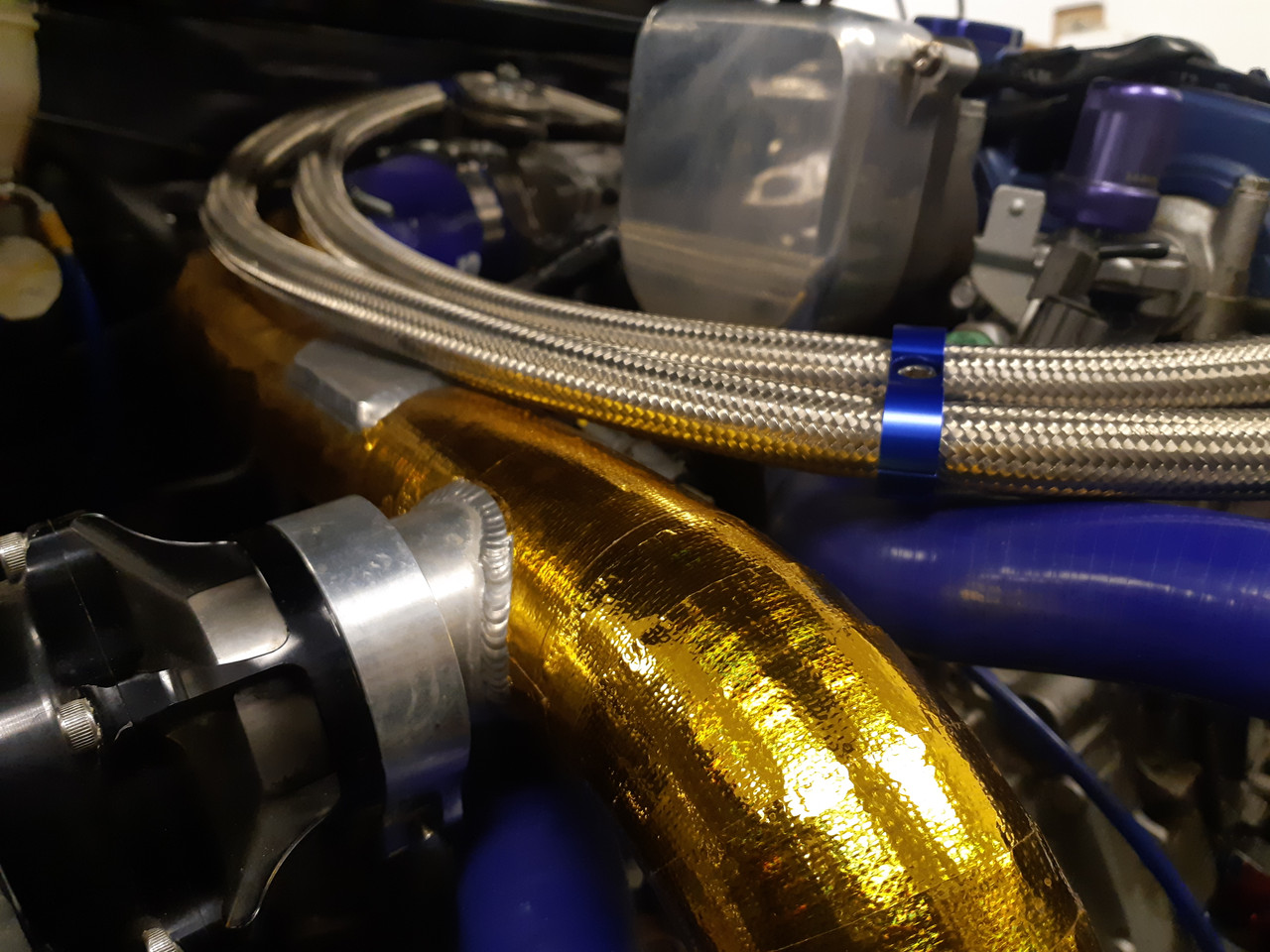

Exoracing heat reflective tape helps reflect radiant heat away from the surface underneath. It can be used on intake pipework, airboxes, engine covers, bulkheads, transmission tunnels, fuel cell panels and other smooth surfaces that need a thin thermal barrier.

The tape format is useful because it can be cut into strips and worked around curves, bends and smaller areas. It is a better choice than sheet when you are dealing with narrow pipework, awkward shapes or small panels. For bigger areas, use our heat reflective sheet.

If the heat source is the turbo itself, reduce heat at the source with an Exoracing turbo blanket, then use reflective tape on nearby intake parts or panels. If you need to protect hoses, wiring or lines, choose silicone fibreglass heat sleeve or Velcro heat sleeve instead.

Which Exoracing Heat Protection Product Do I Need?

Purchase Includes

• 1 x Exoracing gold or silver heat reflective tape roll
• 1 x Exoracing microfibre cloth
• 1 x Exoracing squeegee
• 1 x Exoracing lifetime warranty

Features

• Reflects up to 80% of radiant heat
• Helps protect intake pipes, airboxes, covers and panels from heat soak

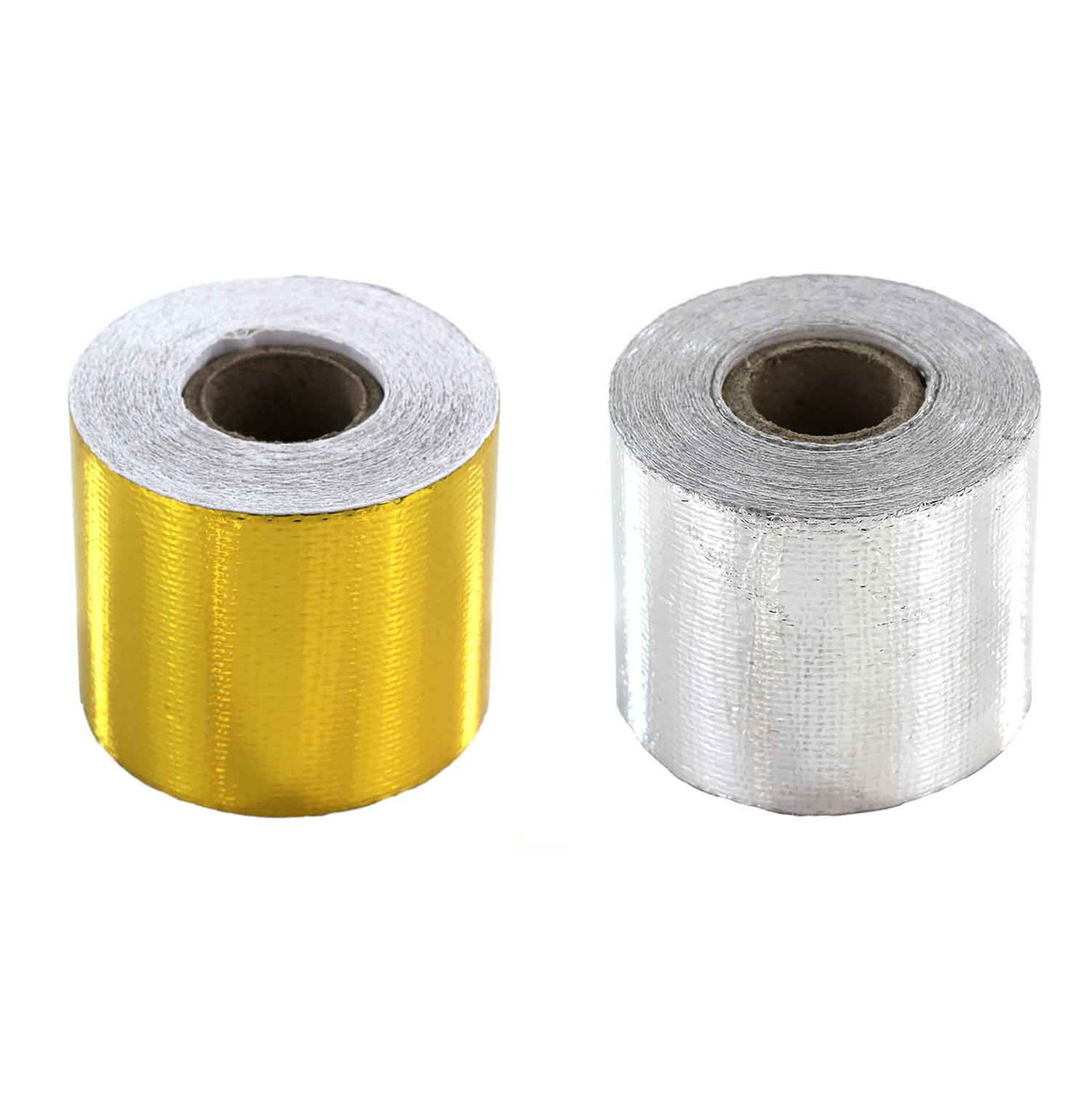

• Gold or silver reflective foil face
• Adhesive-backed for quick installation
• Flexible tape format for tight spaces and curved sections
• Can be cut to length with scissors or a sharp blade
• Lightweight polymer laminated glass cloth construction
• 450°C continuous temperature rating
• 1100°C intermittent temperature rating
• Available in 5m x 5cm and 10m x 5cm rolls
• Includes microfibre and squeegee fitting kit
• Includes Exoracing lifetime warranty

Heat Reflective Tape Installation Guide

1. Clean and degrease the surface thoroughly with the supplied microfibre cloth. Isopropyl alcohol is ideal for removing oily residue.
2. Make sure the surface is dry, smooth and non-porous before applying the tape.
3. Plan the route before removing the backing paper.
4. Cut the tape into strips using scissors or a sharp blade. For most installs, strips are easier to apply cleanly than trying to spiral-wrap the tape.
5. Peel back a small section of the backing paper and line up the first edge.
6. Apply firm pressure with your hand, roller or the supplied squeegee while slowly removing the backing paper.
7. Work along the strip and press it down firmly to activate the pressure-sensitive adhesive.
8. Check all edges are fully stuck down, especially around curves and joins.

For a full installation walkthrough, use our heat reflective tape and sheet installation guide. If you want the cleanest possible install on awkward panels, the Exoracing heat reflective tape installation kit is also available separately.

Technical Specifications

Frequently Asked Questions

Should I choose gold or silver?

Both options are designed for radiant heat reflection. Choose gold for the classic motorsport heat-shield look, or silver for a cleaner, more subtle finish around the engine bay, airbox or interior panels.

Should I choose 5m or 10m?

Choose 5m for smaller jobs such as one intake pipe, a small airbox section or a few panels. Choose 10m if you are covering multiple pipes, larger intake routes, bulkhead sections or want spare tape for future heat-management jobs.

What surfaces can I apply it to?

Apply it to clean, dry, smooth, non-porous surfaces such as aluminium, stainless steel, painted panels, plastic airboxes and smooth covers. Avoid porous, oily, dirty or heavily textured surfaces because the adhesive will not bond as well.

Is this better than heat reflective sheet?

Use tape for pipework, curved parts, small sections and awkward shapes. Use heat reflective sheet for larger flat areas where one cut-to-shape piece will give a cleaner finish.

Can I use this directly on exhaust parts?

No. Heat reflective tape is for nearby surfaces that need radiant heat protection. For exhaust manifolds, downpipes or pipework, use Exoracing exhaust wrap.

Notes

• The tape is rated to 850°F / 450°C continuous and 2000°F / 1100°C intermittent.
• Do not install on porous or contaminated surfaces.
• Clean and degrease the surface before application for the best adhesive bond.
• Avoid tar and glue remover near the installed tape, as it may affect the adhesive.
• Use reflective tape on nearby panels, covers and intake parts, not directly on exhaust pipes.
• For help choosing between tape, sheet, wrap and heat shield products, read our heat shield vs exhaust wrap vs heat tape guide.

Official product information supplied by Exoracing.
