Home » Shop » Universal » Exoracing Oil Pressure Sensor Adapter

SKU: EX-TUR-OIL

Category: Exoracing

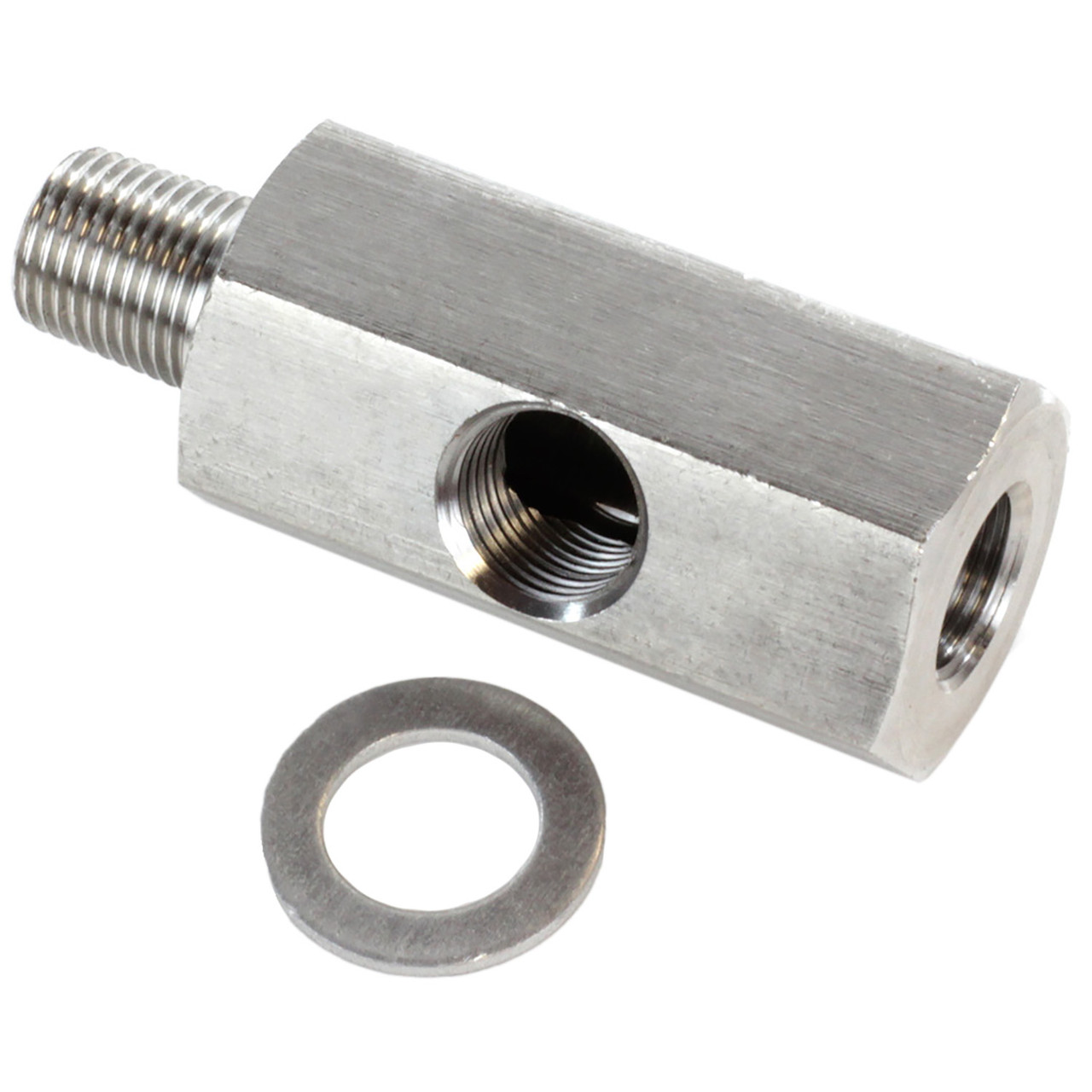

Exoracing Oil Pressure Sensor Adapter

Add a turbo oil feed, oil pressure gauge or oil temperature sensor using 304 stainless adapters. Choose BSPT, NPT, M10x1.0 or 4-port thread layouts.

£19.99

Thread Layout

Clear

Exoracing Oil Pressure Sensor Adapter

Choose The Right Oil Pressure Sensor Adapter For Your Engine

The Exoracing oil pressure sensor adapter lets you use the engine’s existing oil pressure sensor port to add an extra oil pressure sensor, oil temperature sensor or turbo oil feed. It is CNC machined from 304 stainless steel, supplied with a crush washer, and available in six common thread layouts so you can match the adapter to your engine and sensor setup.

Use case: add a turbo oil feed, oil pressure gauge, oil temperature sensor or extra monitoring port
Material: CNC-machined 304 stainless steel
Included: 1 oil pressure sensor adapter, 1 crush washer and Exoracing lifetime warranty
Available options: 1/8″ BSPT to NPT, 1/8″ NPT, M10x1.0 to 1/8″ NPT, M10x1.0 to NPT, 4 port M10x1.0, and 4 port M10x1.0 to 1/8″ NPT
Fitment: match the inlet and outlet threads to the engine block and original sensor before ordering

Important: oil leaks can cause serious engine damage. Confirm your thread type before ordering, use the supplied crush washer where required, and install carefully so every port seals correctly.

Why Use Exoracing Oil Pressure Sensor Adapters?

If you are adding a turbo oil feed or extra oil monitoring, the factory oil pressure sensor port is often one of the cleanest places to take a feed or reading from. The problem is that engines, sensors and aftermarket gauges do not all use the same thread type, so choosing the wrong adapter can cause leaks, poor fitment or an installation that cannot be finished.

These Exoracing adapters are designed to help you tap into the oil pressure sensor port while keeping the original sensor in place. Depending on the option you choose, you can add one or two extra ports for a turbo oil feed, oil pressure gauge, oil temperature sensor or ECU monitoring sensor.

This is a useful part to fit while building a turbo oil system or adding gauges. If you are completing a turbo oil setup, also check the Exoracing AN10 turbo oil drain flange kit, Exoracing AN10 turbo oil return drain fitting and Exoracing 1/8″ NPT to AN04 T-piece oil feed pressure sensor adapter.

Which Oil Pressure Sensor Adapter Option Do I Need?

Start by identifying the thread in your engine block’s oil pressure sensor port and the thread on the original oil pressure sensor. Then choose the adapter that matches the inlet and outlet threads, and gives you the centre tap thread needed for your gauge, sensor or turbo oil feed.

Option	Inlet Thread	Outlet Thread	Extra Port
1/8″ BSPT To NPT	1/8″ BSPT male	1/8″ BSPT female	1/8″ NPT female
1/8″ NPT	1/8″ NPT male	1/8″ NPT female	1/8″ NPT female
M10x1.0 To 1/8″ NPT	M10x1.0 male	M10x1.0 female	1/8″ NPT female
M10x1.0 To NPT	M10x1.0 male	M10x1.0 NPT female	M10x1.0 NPT female
4 Port M10x1.0	M10x1.0 male	M10x1.0 female	2 x M10x1.0 female ports
4 Port M10x1.0 To 1/8″ NPT	M10x1.0 male	M10x1.0 female	2 x 1/8″ NPT female ports

Common Uses

Use Case	Why It Helps
Turbo oil feed	Provides a take-off point for a turbo oil feed while retaining the factory oil pressure sensor.
Oil pressure gauge	Allows an aftermarket oil pressure sensor to be added for better engine monitoring.
Oil temperature sensor	Can provide an extra threaded port for oil temperature monitoring where suitable.
Extra ECU/safety input	Useful for cars that need additional pressure data for logging, warning lights or protection strategies.

Purchase Includes:

1 x Exoracing oil pressure sensor adapter
1 x Exoracing crush washer
1 x Exoracing lifetime warranty

Features:

Adds an extra oil feed or sensor port from the factory oil pressure sensor location
Useful for turbo oil feeds, oil pressure gauges and oil temperature sensors
CNC machined from 304 stainless steel
Six common thread layouts available
Compact design for tight engine bay applications
Supplied with a crush washer to help seal the adapter to the engine port
Each adapter is inspected before shipping
Includes Exoracing lifetime warranty

Exoracing Oil Pressure Sensor Adapter Installation Guide:

Correct thread selection and sealing are essential. If the adapter or sensor leaks, stop the engine immediately and fix the issue before driving.

Confirm the engine is switched off, cool, and safe to work on.
Identify the factory oil pressure sensor port and confirm the thread type before removing anything.
Remove the stock oil pressure sensor carefully.
Install the Exoracing adapter into the engine block using the supplied crush washer where required.
Tighten carefully. Around 18Nm is a useful guide, but thread condition and thread type can change the final requirement.
For NPT-style threads, use a suitable sealing method where required and do not over-tighten tapered threads.
Reinstall the original oil pressure sensor into the adapter outlet.
Install your additional sensor or turbo oil feed into the centre port.
Start the engine, check oil pressure, and inspect every threaded joint for leaks before driving.

Technical Specifications:

Specification	Details
Material	304 stainless steel
Length	50mm
Width	19mm
Weight	78g
Available Thread Layouts	1/8″ BSPT, 1/8″ NPT, M10x1.0 and 4 port M10x1.0 options
Warranty	Exoracing lifetime warranty

Frequently Asked Questions

Which oil pressure sensor adapter do I need?

Choose the adapter that matches the thread in your engine block and the thread on the original oil pressure sensor. Then check the centre port thread for the extra sensor, gauge or turbo oil feed you want to add.

Can I use this for a turbo oil feed?

Yes, if the thread layout matches your engine and oil feed fitting. The adapter can provide a take-off point for a turbo oil feed while retaining the original oil pressure sensor.

Can I add both oil pressure and oil temperature sensors?

The 4-port options provide two extra female ports, which can be useful for multiple sensors if the thread types match your sensors.

Do I need thread sealant or PTFE tape?

NPT-style tapered threads may need a suitable sealing method. Use care and do not over-tighten, especially on older engine block threads.

What happens if I choose the wrong thread?

The adapter may not fit or may leak. Always confirm the inlet, outlet and centre port threads before ordering.

Notes:

Please check the inlet, outlet and centre port thread sizes before ordering.
Oil leaks can cause serious engine damage. Check carefully after installation.
Professional installation is recommended if you are unsure about the thread type or sealing.
Do not over-tighten tapered NPT threads.

Official product information supplied by Exoracing.
