Fitment And Compatibility

This kit is for Honda Civic EG/EK 1992-2000 models running D-series D15 or D16 coolant hose layouts. It includes the main 10 silicone hoses and the clamp kit needed to replace the matching rubber hoses in the engine bay.

• Fits: Honda Civic EG/EK D15/D16 1992-2000 with matching D-series hose routing.
• Check first: imported cars, engine-swapped cars, turbo builds and cars with aftermarket radiators, intake manifolds or custom coolant routing should compare the hose layout before ordering.
• Does not fit: B16/B18, K-swap, H-swap, diesel or non-D-series Civic hose layouts as a complete kit.

If you are not sure whether your Civic uses the correct D15/D16 hose layout, contact us before ordering.

Why Should You Use An Exoracing Honda D-Series Silicone Hose Kit?

Original Honda rubber coolant hoses can harden, crack and swell after years of heat cycles, coolant exposure and engine-bay temperature. A failed coolant hose can quickly cause coolant loss, overheating and avoidable engine damage.

The Exoracing D-series silicone hose kit replaces old rubber hoses with reinforced 4-ply silicone. The kit includes 10 hoses plus a full 304 stainless steel worm drive clamp kit, so you can refresh the matching D15/D16 hose system in one job rather than reusing tired clamps.

The black outer with purple inner layer gives a clean engine bay finish while adding resistance to heat, UV, water and ageing. It is a practical reliability upgrade for road cars, track cars, turbo D-series builds and restored EG/EK Civic engine bays.

For fitting help, read our silicone hose kit installation guide. For more cooling and hose products, browse the Exoracing heat management collection.

Purchase Includes:

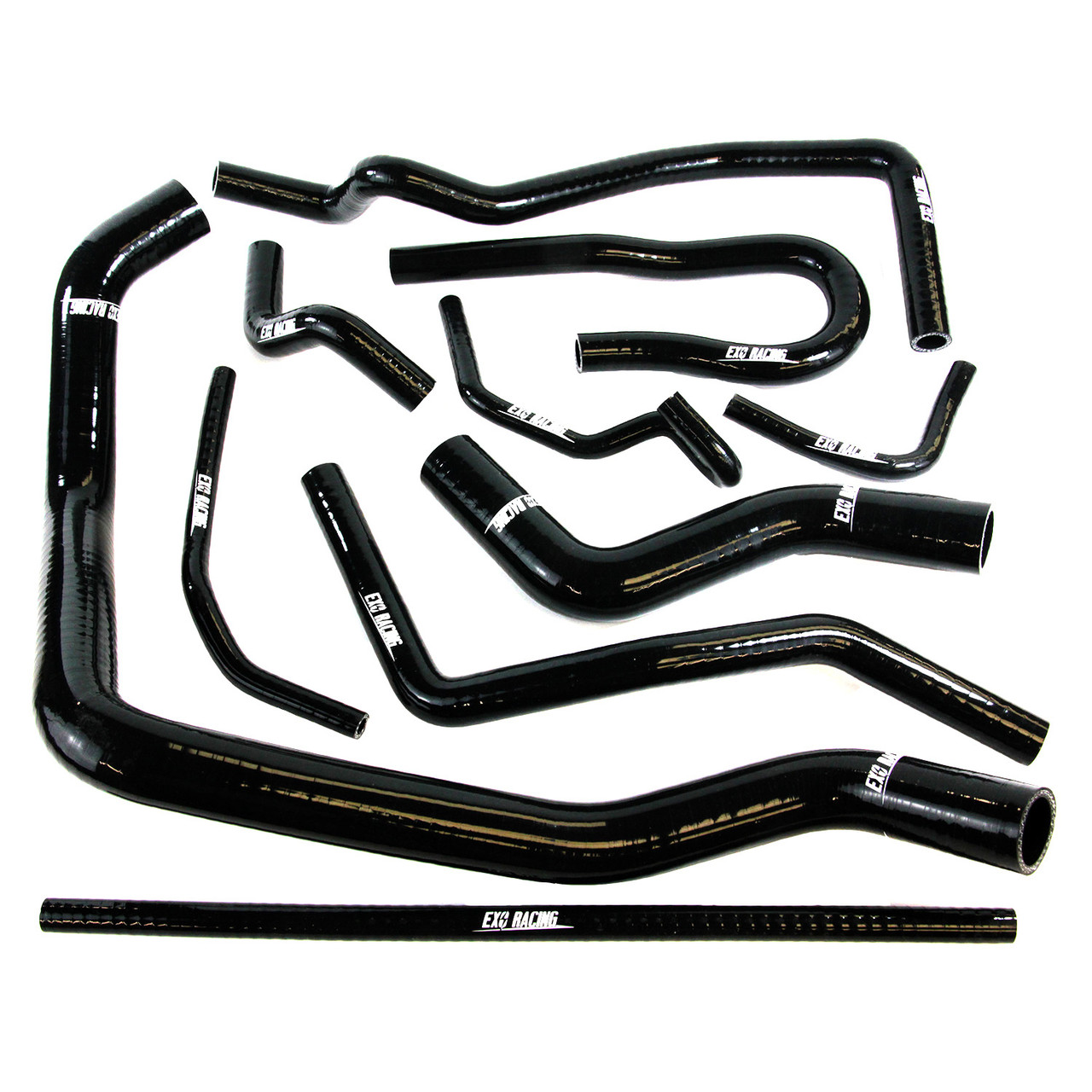

• 10 x Exoracing D-series reinforced silicone hoses
• 1 x Exoracing 304 stainless steel worm drive clamp kit
• 1 x Exoracing Lifetime Warranty

Features:

• Designed for Honda Civic EG/EK D15/D16 D-series hose layouts
• Replaces ageing coolant hoses with reinforced silicone
• Includes a complete 10-piece silicone hose kit
• Includes a 304 stainless steel worm drive clamp kit
• Manufactured from high-quality 4-ply polyester-reinforced silicone
• 4.5mm wall thickness
• Working pressure: 85 PSI
• Burst pressure: 245 PSI
• Operating temperature range: -60°C to 260°C
• Black outer finish with purple inner layer
• Includes Exoracing lifetime warranty

Exoracing D-Series Silicone Hose Kit Installation Guide:

Install this kit while the engine is cold and the coolant system is drained.

1. Make sure the engine is completely cold before opening the cooling system.
2. Safely raise the car if extra access is required and place a drain pan under the radiator drain point.
3. Remove the radiator cap, drain the coolant and dispose of old coolant responsibly.
4. Lay out the 10 silicone hoses and match each one against the original hose it will replace.
5. Remove one old hose at a time and fit the matching Exoracing silicone hose in the same location.
6. Make sure each hose is fully seated on the pipe neck before tightening the supplied 304 stainless clamp.
7. Do not over-tighten clamps, as excessive clamp force can damage silicone hoses.
8. Refill the cooling system with suitable coolant and bleed the system fully.
9. Run the engine up to temperature, check for leaks, then recheck the coolant level once the engine cools.

Installation difficulty: moderate DIY. Professional installation is recommended if you are not confident in draining and bleeding a cooling system.

Technical Specifications:

Frequently Asked Questions

Will this fit my 1992-2000 Honda Civic?

It is designed for Civic EG/EK D-series D15/D16 hose layouts. If your car has a B-series, K-series, H-series, diesel or swapped engine, do not buy this as a complete hose kit.

Will this fit a B16 or B18 Civic?

No. This listing is for D-series D15/D16 hose layouts, not B-series VTi, SiR or B-swapped cars.

Does this include clamps?

Yes. The kit includes a 304 stainless steel worm drive clamp kit, so you do not need to reuse old coolant hose clamps.

Does this include every hose in the engine bay?

No. It includes the 10 hoses in this D-series kit. Compare the hoses in your engine bay before ordering if your Civic is imported, modified or engine-swapped.

When should I fit this kit?

The best time to fit it is while the coolant system is already drained, such as during radiator replacement, coolant service, engine-bay refresh work or D-series maintenance.

Notes:

• Designed for Honda Civic EG/EK 1992-2000 D-series D15/D16 hose layouts.
• Not suitable as a complete hose kit for B-series, K-series, H-series, diesel or engine-swapped Civics.
• Imported, modified, and turbocharged cars should compare hose routing before ordering.
• Install only when the engine is cold to reduce the risk of burns from hot coolant.
• Bleed the cooling system fully after installation and check for leaks after the first heat cycle.
• Professional installation is always recommended.

Official product information supplied by Exoracing.
